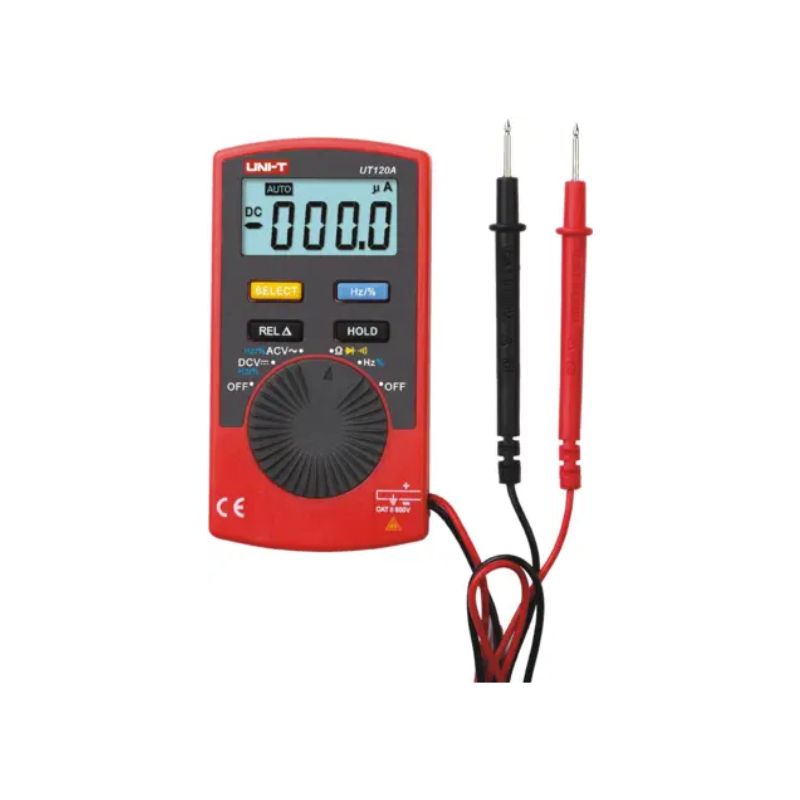

Pocket Size Multimeter UNI-T UT120A

High-Portability Diagnostics for Field Service and Site Audits

The UNI-T UT120A represents a specialized advancement in ultra-portable electrical auditing, specifically engineered for the high-speed monitoring of residential and light commercial systems. In the South African telecommunications, security installation, and facility maintenance sectors—where identifying localized circuit faults or auditing power levels in cramped equipment cabinets is daily protocol—the UT120A provides a high-resolution 4,000-count display in a chassis no larger than a credit card. By integrating a specialized frequency and duty cycle mode into an ultra-slim form factor, this instrument serves as a primary diagnostic tool for on-the-go technicians and service engineers.

Professional Accuracy in a Miniature Form Factor

The UT120A is optimized for reliable data capture across diverse technical platforms:

• Ultra-Slim 4,000-Count Display: Provides superior decimal precision for its size, allowing for the detection of minor voltage fluctuations in control circuits that standard compact meters cannot resolve.

• Integrated Test Leads: Featuring a unique wrap-around lead storage system, the UT120A eliminates the need for separate cables, ensuring the tool is always ready for rapid deployment during emergency site calls.

• Frequency and Duty Cycle Monitoring: Capable of measuring frequency up to 100kHz, making it indispensable for troubleshooting signal-level circuits in alarm systems and automated gate controllers.

Intelligent Auditing and Field Performance

Efficiency and safety are built into the core functionality of the UT120A:

• Automatic Range Selection: The intelligent auto-ranging function identifies the optimal measurement scale for AC/DC voltage and resistance, reducing the risk of reading errors during complex site audits.

• Data Hold and Relative Mode: Capture stable readings in difficult-to-reach areas using the data hold function, or use the relative mode to subtract lead resistance for more accurate low-ohm measurements.

• Rugged Safety Certification: Fully compliant with CAT II 600V safety standards, the UT120A provides reliable operator protection for the testing of single-phase power outlets and low-voltage control systems.

Industrial Ergonomics and Field Reliability

Housed in a ruggedized, pocket-sized chassis with an integrated protective cover, the UT120A is designed for the rigors of the field. The tactile interface is optimized for rapid operation, while the intelligent auto-power-off function and low-battery indicator ensure that your diagnostic capabilities are always ready. With its featherweight design, the UT120A is the ultimate “everyday carry” instrument for modern electrical auditing.

Professional Application Scenarios

• Security & Alarm Systems: Verifying power supply voltages and auditing signal frequency in alarm control panels.

• Telecommunications Auditing: Troubleshooting DC power rails and auditing signal lines in server cabinets.

• Residential Electrical Auditing: Verifying domestic outlet voltages and identifying continuity issues in lighting circuits.

• Automotive Electronics: Basic troubleshooting of 12V/24V electrical systems and auditing sensor resistance.

• Facility Preventive Maintenance: Conducting routine voltage checks on office power strips and auditing low-voltage control circuits.

Maintenance and Best Practices

• Lead Care: Periodically inspect the integrated test leads for insulation wear at the stress points where they enter the meter body to ensure operator safety.

• Storage Protocol: Always store the meter in its protective flip-case when not in use to prevent damage to the high-contrast LCD and the ultra-slim selector dial.

• Contact Integrity: Ensure the test tips are kept clean of oxidation to maintain the precision of resistance and frequency measurements in low-signal environments.

• Battery Care: Replace the CR2032 button battery as soon as the low-power indicator appears to ensure the auto-ranging algorithms maintain peak measurement speed.
