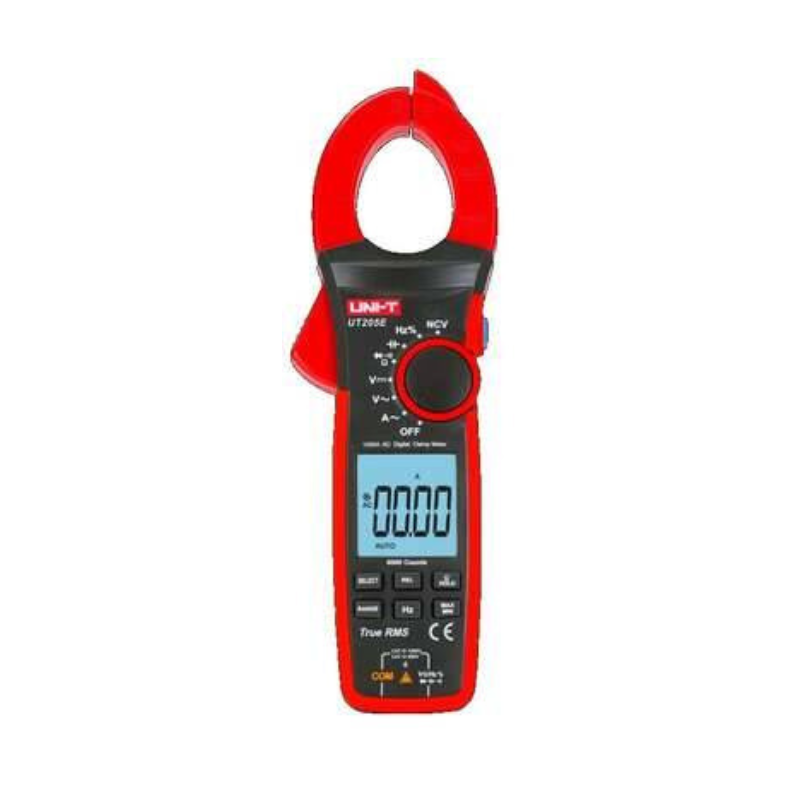

Digital Clamp Meter 1000A AC 1000V AC/DC True RMS – UNI-T UT205E

High-Capacity Precision for Industrial Infrastructure

The UNI-T UT205E represents a critical balance of power and precision, designed specifically for the high-current demands of the South African industrial sector. In environments like manufacturing plants and large-scale commercial buildings—where standard 400A clamps are insufficient—the UT205E provides the necessary 1000A overhead to safely audit primary distribution lines and heavy machinery.

High-Current Auditing and True RMS Performance

The UT205E is built to handle the complex electrical signatures of modern industrial equipment:

• 1000A AC Current Range: High-capacity measurement for large motor starts and main power feeders.

• True RMS Accuracy: Ensures reliable readings on distorted waveforms caused by switching power supplies and electronic ballasts.

• Large 42mm Jaw Opening: The oversized clamp head allows for easy encompassment of large-diameter industrial cables and multiple conductors.

Advanced Diagnostic Safety and Intelligence

Efficiency and operator protection are integrated into every feature of the UT205E:

• Integrated NCV (Non-Contact Voltage): Rapidly identify live AC conductors without physical contact, significantly enhancing safety during initial panel assessments.

• 6000-Count Backlit LCD: Provides high-resolution data visualization with a crystal-clear backlight for use in dark electrical vaults or poorly lit service rooms.

• Comprehensive Multi-Function Suite: Beyond current, the meter provides precision measurement of AC/DC voltage up to 1000V, resistance, capacitance, and frequency.

Industrial Durability and Ergonomics

Housed in a ruggedized, impact-resistant chassis, the UT205E is built for daily professional use in harsh conditions. The tactile interface is optimized for one-handed operation, allowing technicians to manage the clamp and leads simultaneously. With a safety rating of CAT II 1000V and CAT III 600V, the UT205E provides the necessary protection for working on both primary and secondary power distribution systems.

Key Features & Technical Advantages:

• 1000A AC Current Range: Professional capacity for heavy industrial auditing.

• True RMS Technology: Precision measurement for non-linear and harmonic loads.

• NCV Safety Detection: Non-contact identification of energized conductors.

• Large 42mm Jaw: Effortless clamping of large-scale industrial cabling.

• 6000-Count Display: High-resolution digital readout with integrated backlight.

• Auto/Manual Ranging: Flexible control for rapid field diagnostics.

Professional Application Scenarios

• Industrial Electrical Maintenance: Troubleshooting main distribution boards and high-current motor circuits.

• Commercial Facility Management: Auditing the energy consumption of large HVAC systems and cooling towers.

• Secondary Power Distribution: Verifying load balance across multi-phase industrial panels.

• Renewable Energy Infrastructure: Monitoring the AC output of large-scale solar inverters and wind turbines.

• Construction Site Safety: Performing rapid NCV checks on temporary power installations and heavy-duty machinery leads.

Maintenance and Best Practices

To maintain the professional accuracy and longevity of your UNI-T UT205E, follow these protocols:

• Jaw Contact Integrity: Keep the clamp jaw surfaces clean and free of oxidation or grit; even minor debris can interfere with the magnetic circuit and cause measurement errors.

• Lead Inspection: Regularly check the 1000V-rated test leads for any signs of insulation damage or thermal stress before performing high-voltage audits.

• Environmental Care: While rugged, avoid storing the meter in environments with extreme humidity or chemical vapors that could affect the internal precision components.

• Battery Management: Use high-quality 9V or AAA batteries (as per model spec); replace immediately upon the low-battery warning to ensure NCV and backlight functions maintain peak performance.
