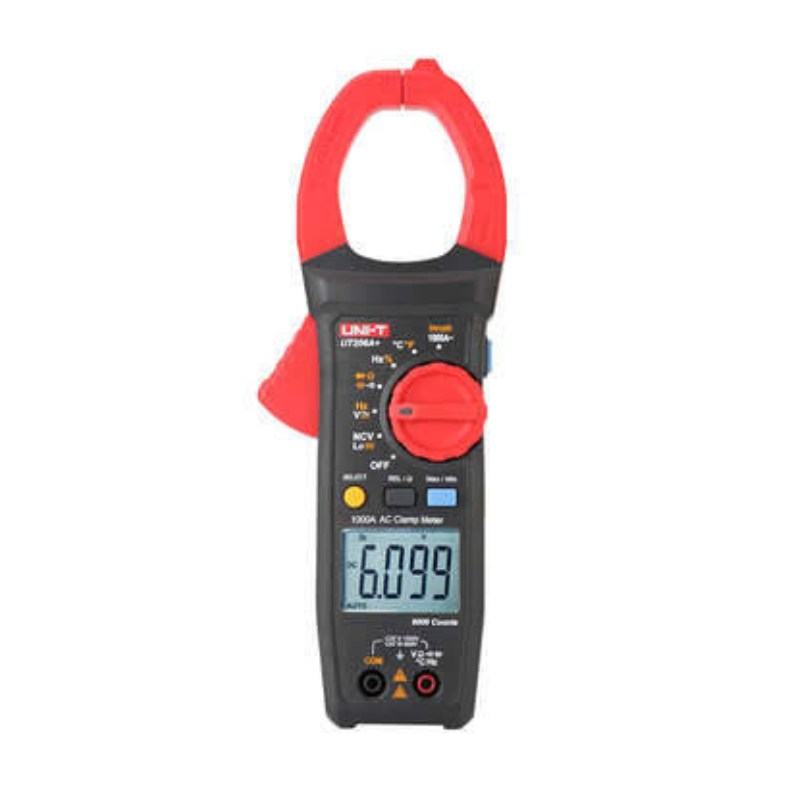

True RMS Clamp Meter with Large Backlit Display – UNI-T UT206A+

Heavy-Duty Performance for Industrial Infrastructure

The UNI-T UT206A+ represents a significant upgrade in the UNI-T “Plus” series, specifically optimized for the rigors of high-power electrical auditing. In the demanding South African industrial landscape—ranging from mining facilities to large-scale manufacturing plants—standard 400A or 600A clamps often fall short. The UT206A+ provides the overhead required for safe current monitoring on heavy-duty induction motors, industrial chillers, and primary distribution panels without compromising on resolution.

Advanced Current Capture and True RMS Accuracy

The UT206A+ is built to provide reliable data in electrically “noisy” environments:

• 1000A High-Capacity Range: Designed for the non-invasive measurement of high-power loads, allowing technicians to monitor primary feed lines without interrupting critical services.

• True RMS Measurement: Essential for accuracy in modern facilities where non-linear loads (such as VFDs, LED drivers, and heavy switching power supplies) can distort standard AC waveforms.

• 45mm Oversized Jaws: The mechanical design features a wider aperture than standard meters, enabling the clamp to comfortably encompass large-diameter industrial cables or multiple parallel conductors.

Safety-Centric Design and Integrated Detection

Operating on high-energy circuits requires a tool that prioritizes operator protection:

• Non-Contact Voltage (NCV): This integrated safety feature allows for rapid identification of live conductors through insulation, serving as a vital secondary check before commencing physical contact with a circuit.

• Comprehensive Multi-Functionality: Beyond current measurement, the UT206A+ serves as a full-featured multimeter, offering high-precision auditing of AC/DC voltage ($1000\text{V}$), resistance ($60\text{M}\Omega$), and capacitance ($60\text{mF}$).

• Frequency & Duty Cycle: Professional-grade tracking of signals from $10\text{Hz}$ to $10\text{MHz}$, critical for verifying the performance of industrial control systems and generators.

Industrial Ergonomics and Field Durability

The UT206A+ is designed for high-intensity field use. The large, high-contrast backlit LCD ensures that data is easily readable in dark electrical vaults or bright sunlight. The impact-resistant housing is paired with an ergonomic trigger and rotary dial, allowing for comfortable one-handed operation even when wearing electrical safety gloves. With its intelligent auto-power-off and low-power consumption circuitry, the UT206A+ remains ready for service during long-duration site audits.

Key Features & Technical Advantages:

• 1000A AC Current Range: High-capacity auditing for massive industrial loads.

• True RMS Technology: Reliable precision on complex and distorted AC signals.

• 45mm Large Jaw Opening: Ideal for thick industrial power cables and busbars.

• Non-Contact Voltage (NCV): Safe detection of live wires without direct contact.

• 1000V Voltage Reach: Professional-tier AC/DC voltage auditing for primary panels.

• High-Resolution 6000-Count Display: Fine increments for detecting minute electrical drift.

Professional Application Scenarios

• Industrial Plant Maintenance: Auditing running current on large conveyor motors and industrial pumps.

• Primary Distribution Balancing: Monitoring load distribution across phases in main switchgear rooms.

• HVAC/R Utility Audits: Testing current draws on high-capacity industrial refrigeration compressors.

• Mining Operations: Robust diagnostics for stationary heavy equipment in harsh, high-vibration environments.

• Telecommunications Power: Verifying the AC/DC stability of backup power banks and large-scale rectifiers.

Maintenance and Best Practices

To maintain the professional accuracy and longevity of your UNI-T UT206A+, follow these protocols:

• Jaw Alignment Integrity: Periodically check that the 45mm jaws are free of debris and close perfectly; a clean magnetic interface is essential for accurate Hall-effect current sensing.

• Battery Replacement: Use high-quality AAA batteries; replace them immediately when the low-power indicator appears to ensure the True RMS processing and NCV circuits stay fully calibrated.

• Lead Safety: Inspect the $1000\text{V}$ rated test leads for insulation fatigue before every high-energy measurement session.

• Storage Protection: Keep the meter in the provided carrying case when not in use to protect the oversized LCD from impact damage in your toolbox.
