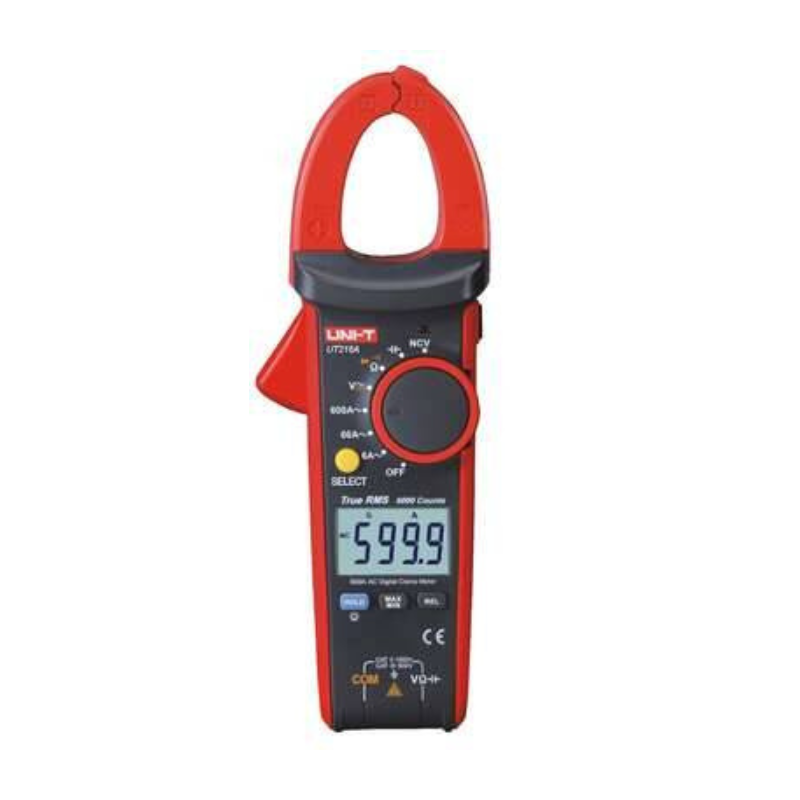

True RMS 600A AC Digital Clamp Meter – UNI-T UT216A

Precision Analysis in Noisy Electrical Environments

The UNI-T UT216A represents a significant technical advancement in the UT216 series, designed specifically to tackle the complexities of modern electrical infrastructure. In an era where motor drives and switching power supplies create significant electrical noise, standard meters often provide erratic readings. The UT216A solves this with specialized filtering and high-speed processing, making it a cornerstone for preventative maintenance and complex troubleshooting.

Variable Frequency Control (VFC) and True RMS Accuracy

The standout feature of the UT216A is its ability to filter through electrical interference:

• VFC Mode: Industrial environments are increasingly reliant on VFDs. The UT216A includes a specialized low-pass filter that suppresses high-frequency noise, ensuring that the voltage readings you see are the actual operational values of the motor or drive.

• True RMS Measurement: Essential for non-sinusoidal AC signals. Whether you are measuring the output of a UPS or an LED lighting array, the True RMS capability ensures your data is accurate regardless of waveform distortion.

• High-Resolution 6000-Count Display: Provides finer measurement increments, allowing for the detection of minute fluctuations in current and voltage that lower-count meters would miss.

Safety-First Engineering and NCV Integration

Safety at Sniper Holdings’ client sites is non-negotiable, and the UT216A is built to exceed international safety standards:

• Integrated NCV Sensor: The Non-Contact Voltage feature provides a rapid, secondary safety check. By holding the clamp tip near a conductor, the meter gives an audible and visual LED warning if the line is live, allowing for safe auditing of insulated cables.

• CAT II 1000V / CAT III 600V Rating: Fully certified for high-energy environments, from residential service panels to fixed industrial installations.

• Live Wire Identification: Using the single-probe method, technicians can safely distinguish between phase and neutral wires, a critical step in verifying safe wiring practices during Certificates of Compliance (CoC) audits.

Ergonomic Design and Field Reliability

The UT216A is designed for high-intensity field use. The $30\text{mm}$ jaw opening allows for non-invasive current measurement on a wide variety of cable gauges. The high-contrast backlit display is supplemented by a built-in high-intensity LED flashlight, ensuring that even in the darkest distribution boards or crawlspaces, your measurement points and data remain clearly visible. Its impact-resistant housing and tactile rotary dial are optimized for one-handed operation, even when wearing safety gloves.

Key Features & Technical Advantages:

• $600\text{A}$ AC Current Range: High-capacity measurement for industrial and commercial loads.

• True RMS Technology: Precise data on distorted, non-linear AC signals.

• VFC Mode: Specialized filtering for accurate VFD and motor drive diagnostics.

• Non-Contact Voltage (NCV): Safe detection of live wires without physical contact.

• Integrated Flashlight & Backlight: Optimized for safety in low-light work environments.

• Data Hold & Relative Mode: Professional-level auditing tools for capturing peak values and subtracting lead resistance.

Professional Application Scenarios

• Industrial Motor Maintenance: Auditing current draws and voltage stability in motors controlled by Variable Frequency Drives (VFDs).

• Commercial Building Audits: Identifying phase imbalances and circuit overloads in large-scale office park distribution boards.

• Renewable Energy Systems: Monitoring the AC output purity of solar inverters and verifying grounding integrity.

• HVAC/R Diagnostics: Testing blower motor current and verifying thermostat control voltages in complex air conditioning systems.

• Facility Management: Rapid identification of live circuits during building renovations or electrical retrofitting.

Maintenance and Best Practices

To maintain the professional accuracy and longevity of your UNI-T UT216A, follow these protocols:

• VFC Application: Only engage VFC mode when measuring outputs from frequency converters or noisy drives; using it on clean sine waves may lead to slightly lower readings due to the low-pass filter.

• Jaw Alignment: Keep the $30\text{mm}$ jaws free of dust and corrosion; a clean magnetic seal is essential for the Hall-effect sensor to deliver laboratory-grade precision.

• Battery Protocol: The UT216A features an intelligent auto-power-off. However, always replace batteries as soon as the low-power indicator appears to ensure the VFC and NCV circuits remain fully calibrated.

• Lead Integrity: Periodically inspect the $1000\text{V}$ rated test leads for nicks or stress fractures near the strain relief points.
