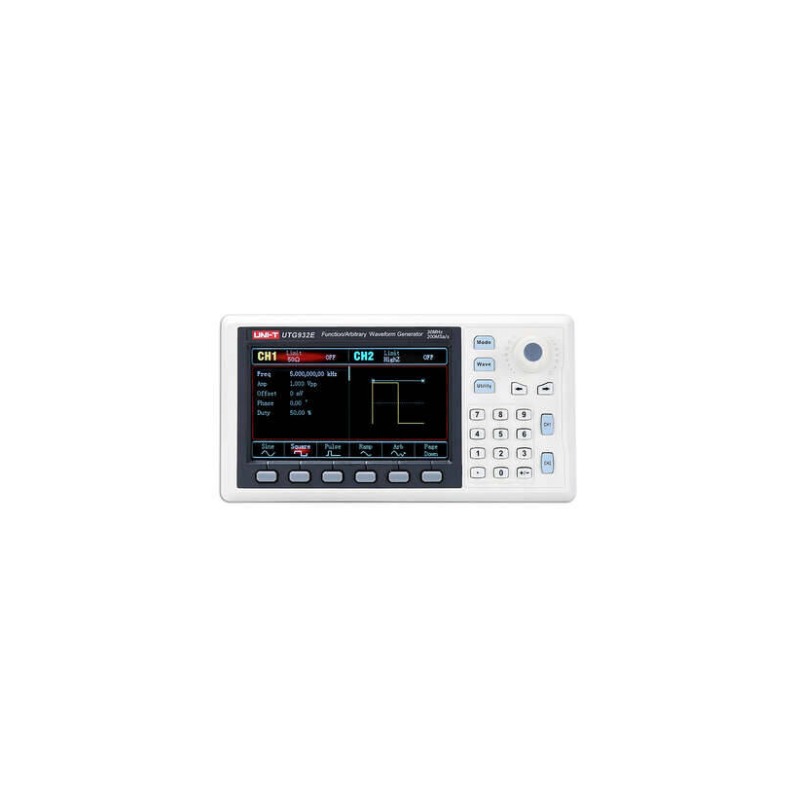

Arbitrary Waveform Generator – 30MHz 2‑Channel Mini UNI-T UTG932E

Professional Precision in a Handheld Design

As part of the UNI-T Classic-Series, the UTG932E utilizes advanced Direct Digital Synthesis (DDS) technology to generate stable and pure waveforms with a minimum resolution of 1μHz. Its small footprint (172mm x 90mm) makes it the ideal choice for crowded workbenches or mobile kits, allowing you to carry a full-featured laboratory generator in your backpack.

Dual-Channel Versatility & Modulation

The UTG932E features two independent channels with equivalent performance, allowing for complex signal testing and synchronization. Users can choose from 24 built-in arbitrary waveforms—including specialized medical and mathematical signals—or use the free PC software to design and upload custom waveforms via the USB interface. It supports comprehensive modulation types such as AM, FM, PM, and FSK, providing flexibility for communication and RF testing.

Integrated Testing Features

Beyond signal generation, the UTG932E includes a high-accuracy 6-bit frequency counter capable of measuring signals up to 100MHz. It also supports both linear and logarithmic sweep modes, which are essential for analyzing the frequency response of filters, amplifiers, and other electronic components.

Key Features at a Glance:

• 30MHz Max Output: Optimized for general-purpose electronic testing and education.

• 14-Bit Vertical Resolution: Delivers exceptional signal purity and accuracy.

• 4.3-inch TFT LCD: Clear, high-resolution interface for easy parameter adjustment.

• USB Connectivity: Supports PC-based waveform editing and remote control.

• Plug-and-Play Power: Conveniently powered by a standard 5V/2A USB power adapter.
